Overview: The DP-M200 is designed for pipe inspection in harsh underground environments. Featuring IP68 waterproof protection, HD pan-and-tilt camera and rugged all-terrain wheels, it delivers clear inspection results in pipes starting from 200mm diameter.

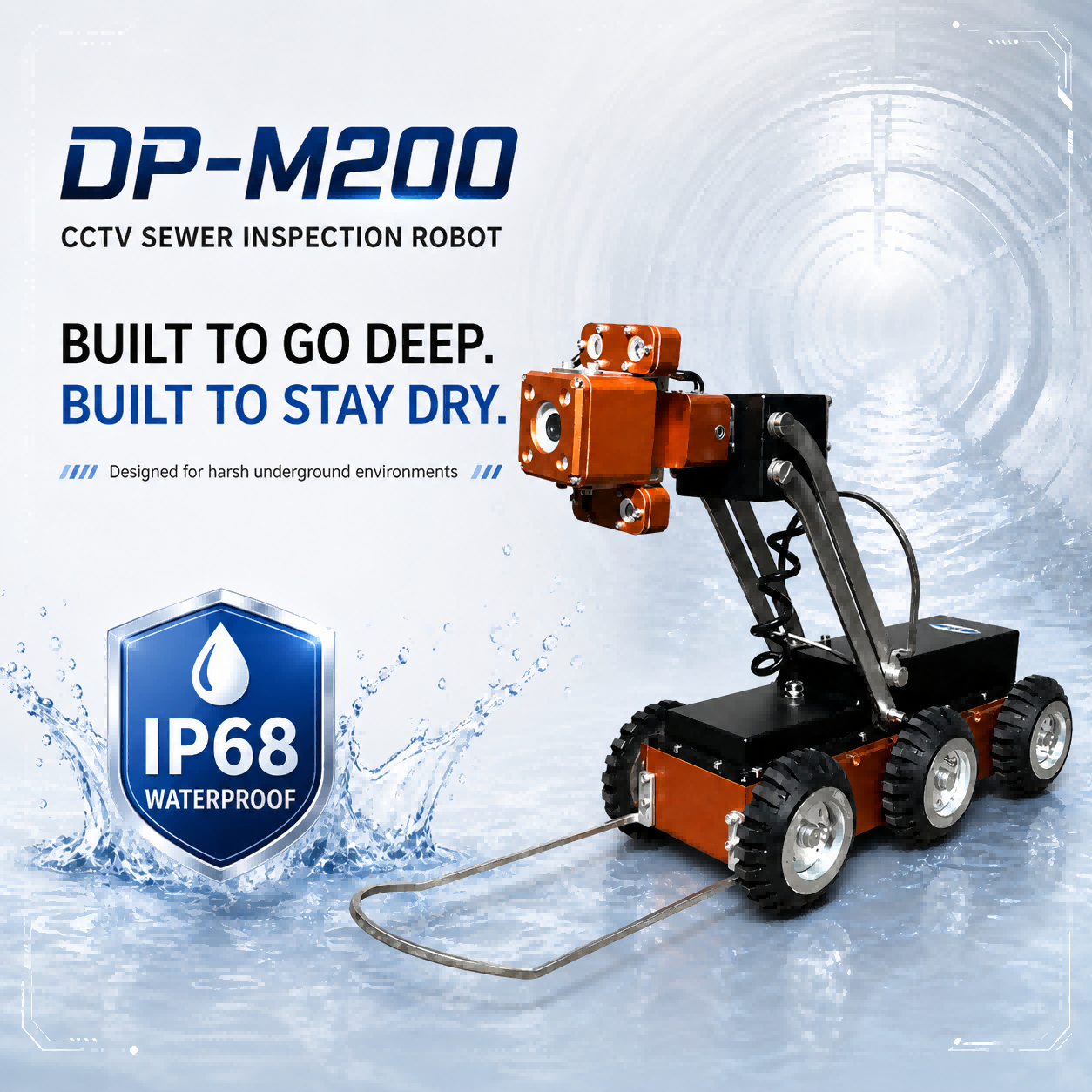

IP68 Waterproof Protection
- Fully sealed waterproof structure
- Suitable for submerged operation
- Corrosion-resistant design
- Long-term durability in sewer systems
Built for Wet and Harsh Sewer Environments
Sewer pipelines often contain standing water, sludge, and highly corrosive substances. The DP-M200 features a fully sealed IP68-rated structure that protects critical electronic components from water ingress and contamination.
Whether operating in partially flooded pipelines or high-humidity environments, the robot maintains reliable performance and ensures uninterrupted inspections.

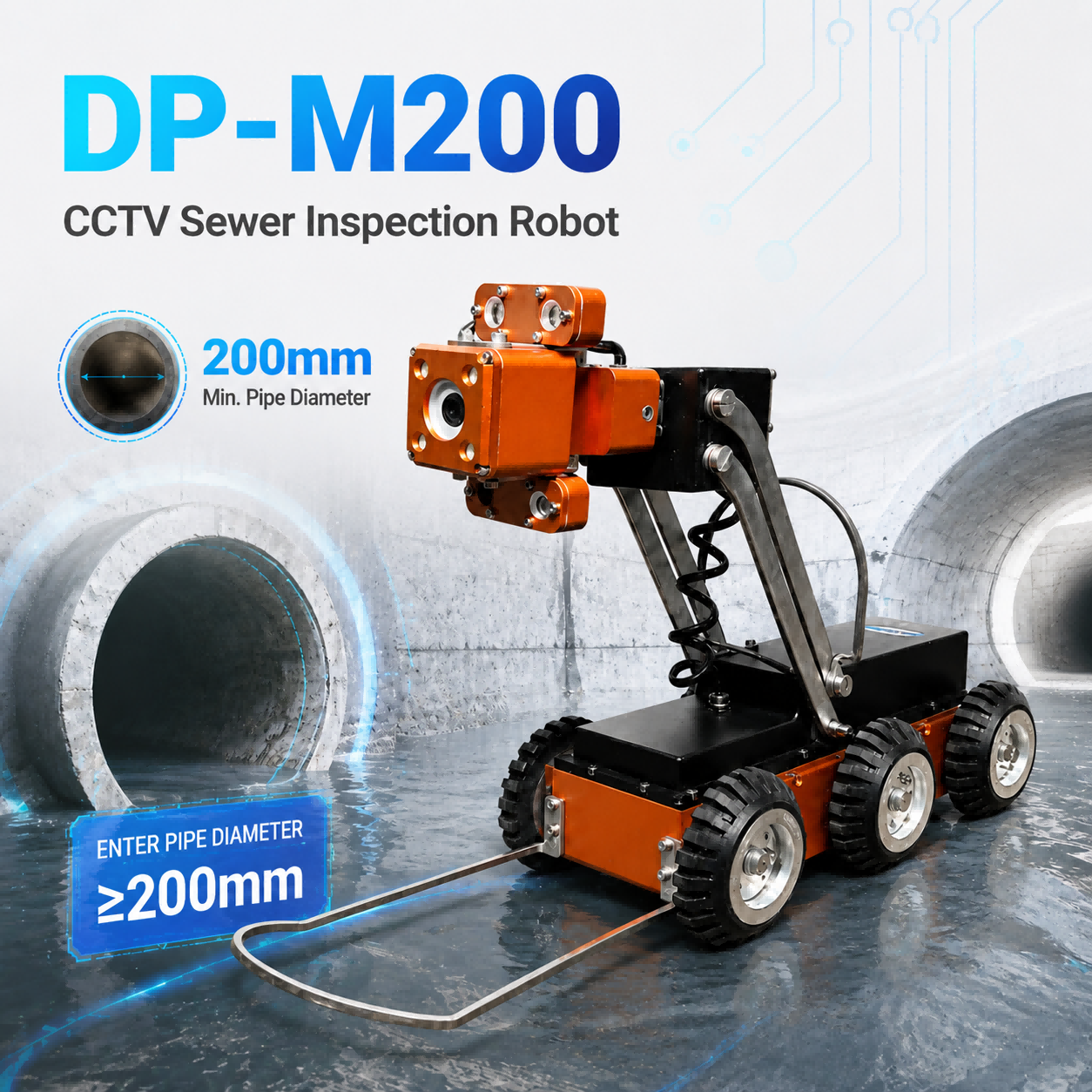

Suitable for Pipes Starting from 200mm
Typical Applications: Municipal sewer systems, Stormwater pipelines, Wastewater networks, Industrial pipelines
Access Narrow and Medium-Sized Pipelines
The compact design of the DP-M200 allows it to enter pipelines with diameters as small as 200mm. This makes it suitable for a wide range of municipal drainage systems, stormwater networks, and industrial pipelines.
Its optimized chassis provides excellent maneuverability while maintaining stability during inspection tasks.

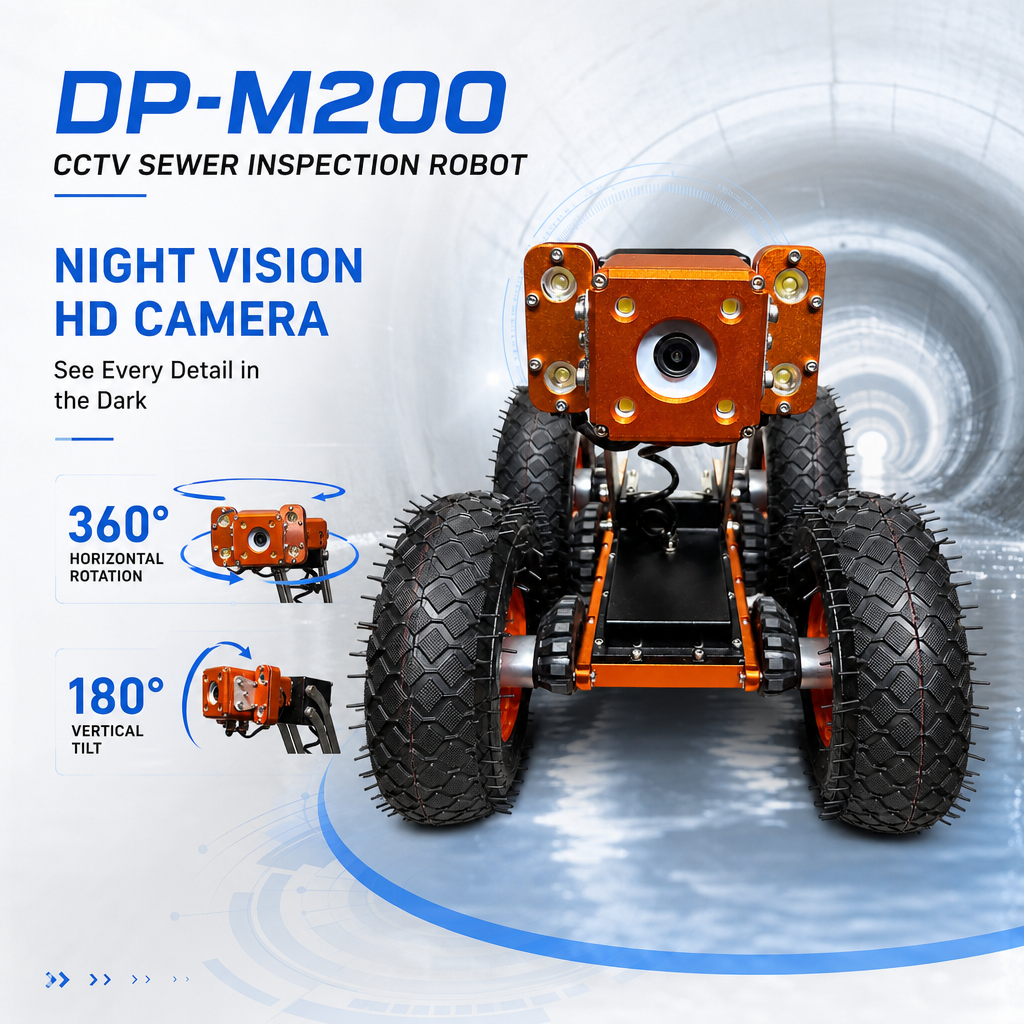

HD Pan-and-Tilt Camera System
Camera features: 360° continuous pan rotation, 180° tilt adjustment, High-definition image capture, Powerful LED illumination, 5 million pixels
Complete Visual Coverage Inside the Pipeline
The robot is equipped with a high-definition camera capable of 360° horizontal rotation and 180° vertical tilt. This allows inspectors to examine every section of the pipeline wall without repositioning the robot repeatedly.
Integrated high-brightness LED lighting ensures clear visibility even in completely dark environments.

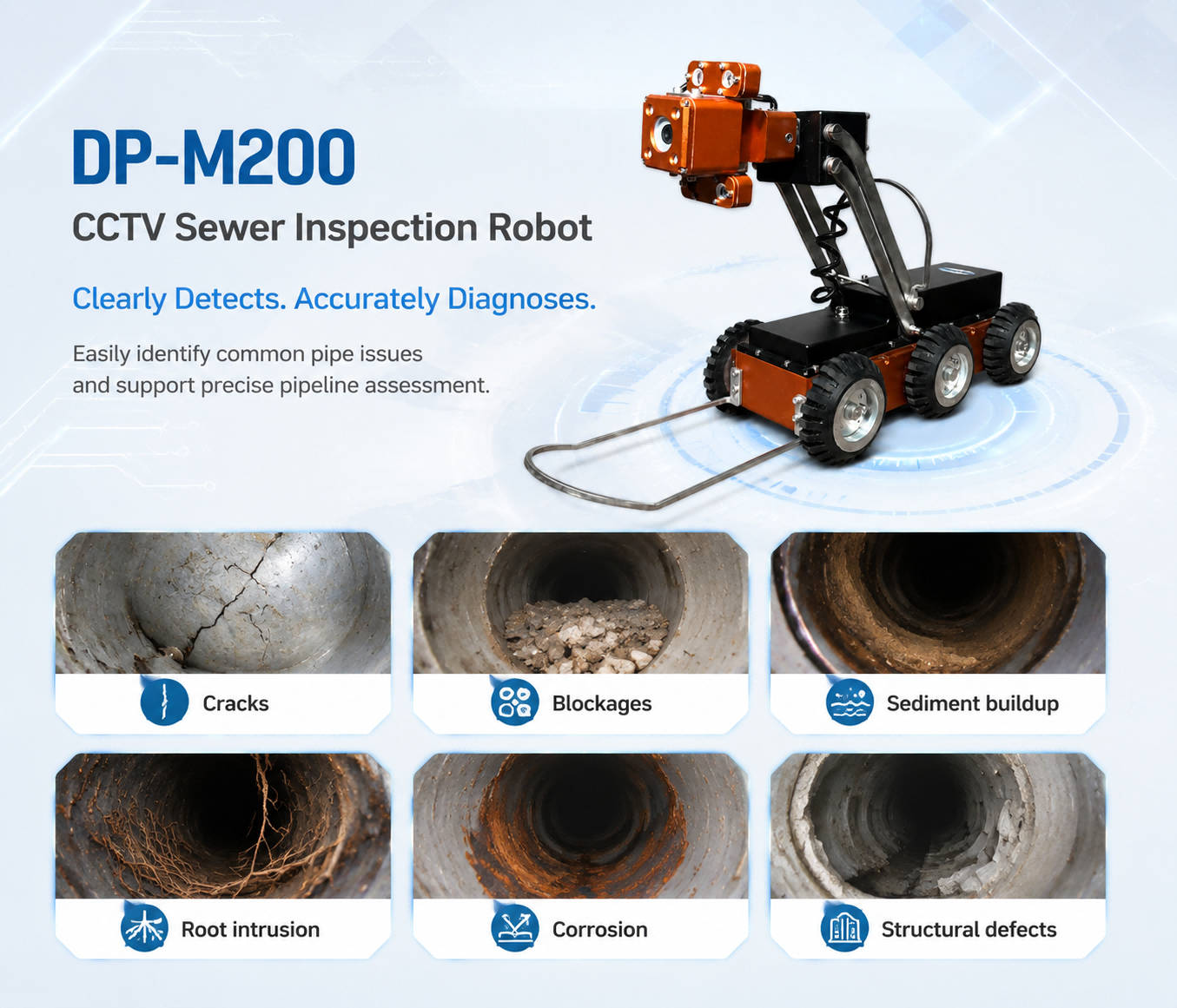

What Problems Can DP-M200 Detect?
- Cracks
- Blockages
- Sediment buildup
- Root intrusion
- Corrosion
- Structural defects
Identify Problems Early
Routine inspections help prevent unexpected failures and expensive repairs. The DP-M200 provides detailed visual information that allows operators to quickly locate and assess pipeline defects.
The inspection footage can be used for maintenance planning, condition assessment, and reporting.

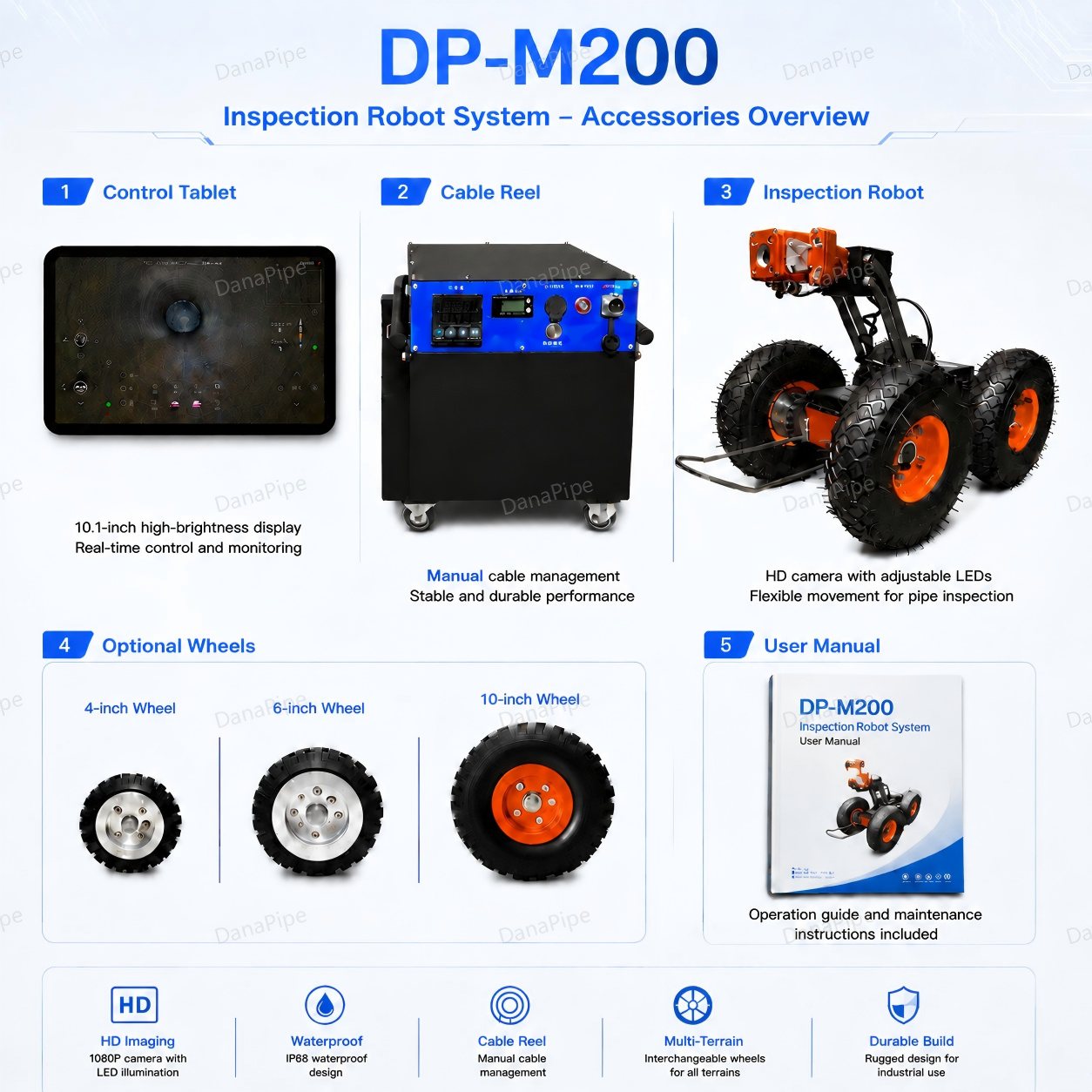

Standard Package
- Inspection Robot
- Wheels
- Controller
- Cable Reel
- User Manual
Professional Technical Support
- Online video training
- Spare parts supply
- One-year warranty
- OEM/ODM available
